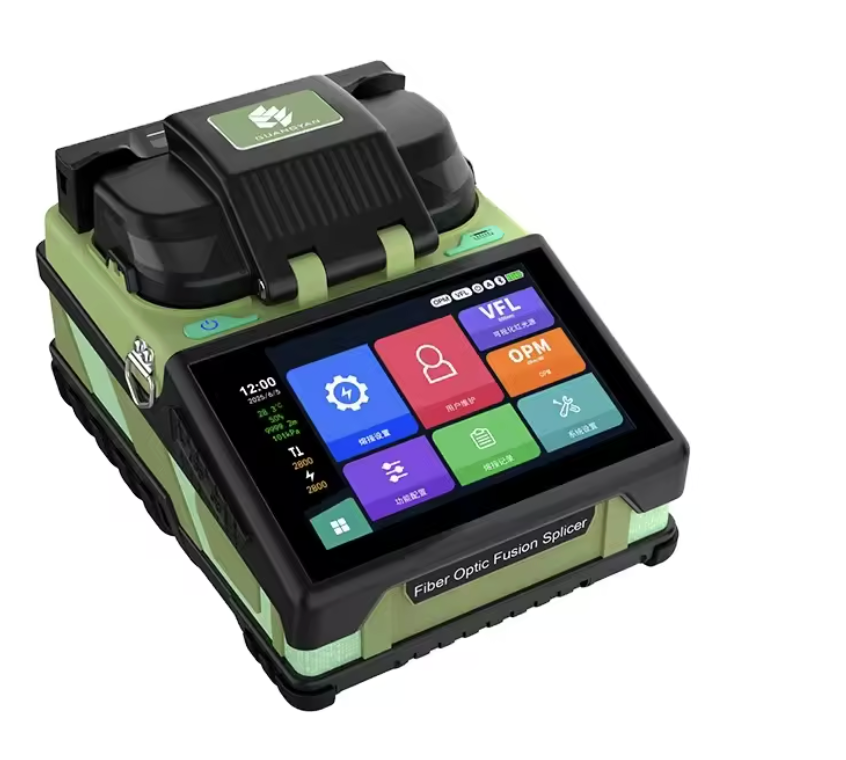

KEFOK6 - 6-Motor Core Alignment Fusion Splicer
The KARVINGER KEFOK6 Fusion Splicer is a professional-grade 6-motor core alignment system engineered for high-stakes fiber deployments.
Built to order above 9 units
We hold 9 on the shelf. Anything beyond that is built to order — 4 to 6 weeks rather than 3 to 4 days. Your quote states the exact split and a dated lead time.
| Quantity | Unit price | Saving |
|---|---|---|
| 1 – 4 | $997.00 | — |
| 5 – 9 | $947.15 | −5% |
| 10 – 24 | $897.30 | −10% |
| 25 – 99 | $817.54 | −18% |
| 100 – 499 | $737.78 | −26% |
| 500+ | $648.05 | −35% |
Indicative. Breaks apply per line item; mixed SKUs aggregate on request.
Specifications
| Alignment | 6-motor core & cladding, auto |
|---|---|
| Typical splice loss | 0.02 dB |
| Fiber types | SMF G.652 · MMF G.651 · DSF G.653 · NZDSF G.655 |

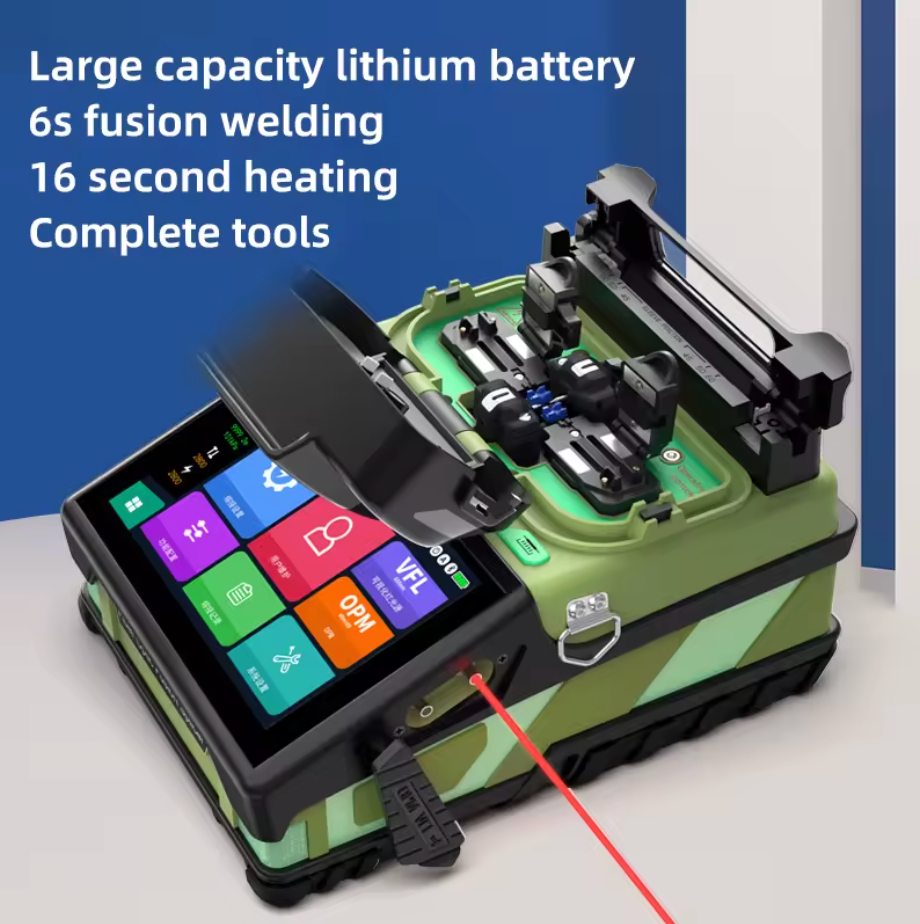

| Splice time | 6 s, SM typical |
| Heating time | 16 s, adjustable |
| Protection sleeves | 20 – 60 mm |
| Built-in VFL | 650 nm · 10 mW |
| Built-in OPM range | 850 – 1625 nm |
| OPM accuracy | ±5 % |
| Dimensions | 7.91 × 5.82 × 4.68 in · 201 × 148 × 119 mm |
|---|---|
| Weight | 3.99 lb · 1.81 kg |
| Battery | 10.8 V · 7800 mAh lithium |
| Runtime | 240 + splice & heat cycles |
| Charging | DC 13.5 V / 4 A · 3.5 h |
| Housing | Industrial alloy, reinforced |
| Case | TSA-secure aluminum |

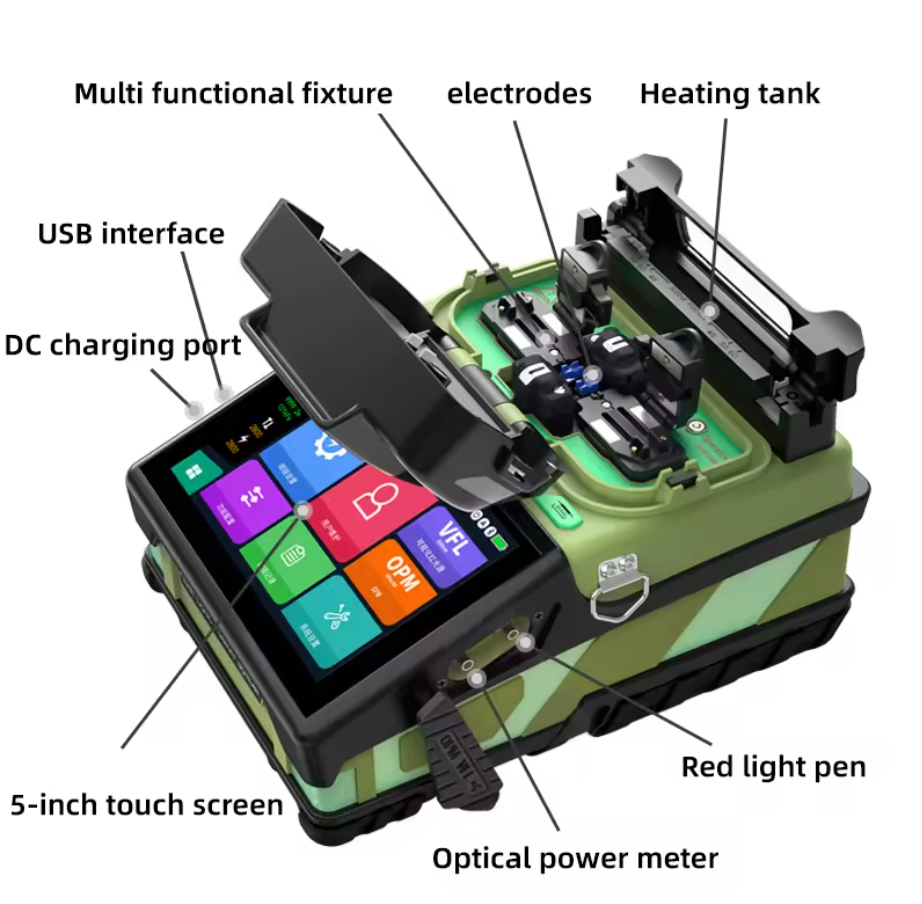

Capabilities
- Six-motor core and cladding alignment
- Image-processing autofocus
- Built-in visual fault locator
- Built-in optical power meter
- Adjustable heating cycle
- SMF, MMF, DSF and NZDSF splicing
- Field-replaceable electrodes

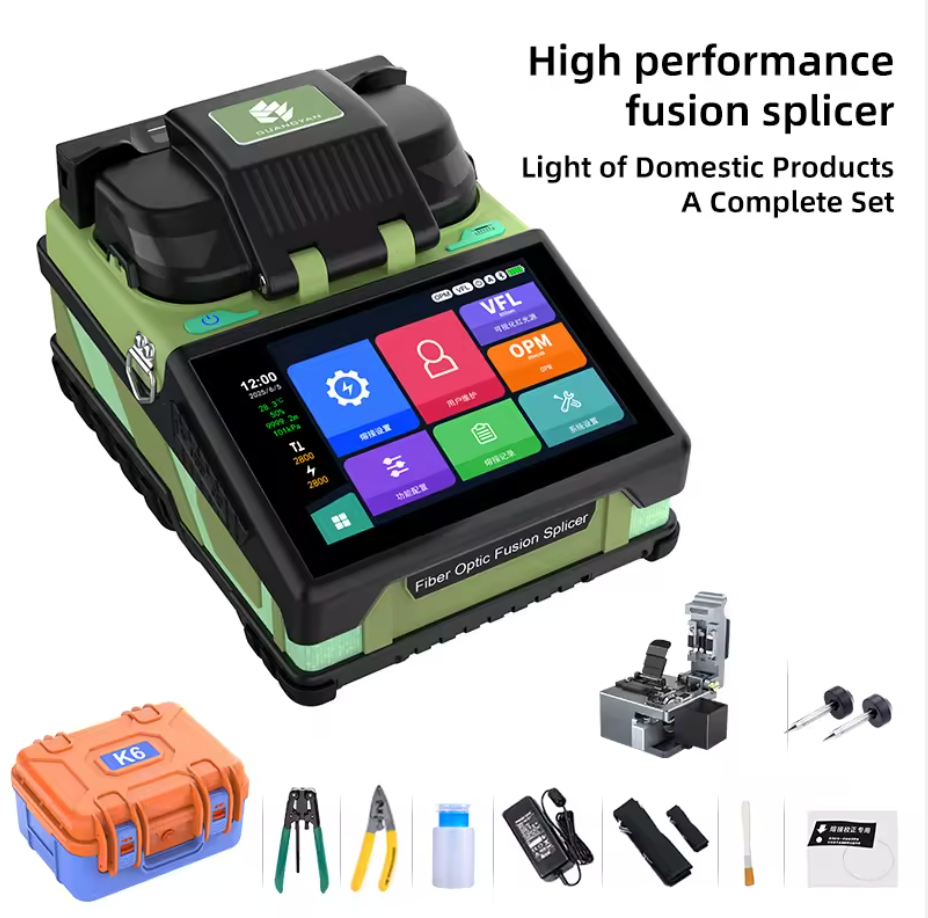

In the box
- KEFOK6 splicer
- High-precision fiber cleaver
- TSA-secure aluminum case
- Fiber stripper & pliers
- Spare electrodes, 1 pair
- AC power adapter
- Shoulder strap
- Hand strap
- Cleaning brush
- Alcohol bottle
- Splice protection sleeves
- Calibration fiber
- User manual
- Warranty card
Product detail
Video
Shipping & warranty
| Dispatch | 3–4 business days |
|---|---|
| Built to order | 4–6 weeks above stock on hand |
| Origin | US warehouse |
| Shipping | Free on every order |
| Term | 24 months |
|---|---|
| Cover | Repair or replace |
| Money-back | 30 days |
| Restocking fee | None |
Reviewed by technicians
Reviews publish only where we can match the reviewer to an invoice. Photos and video are uploaded by the buyer and shown unedited.
No reviews on this tool yet. If you have put one through its paces in the field, we would like to hear about it.
Questions about this tool
What is the difference between core alignment and cladding alignment fusion splicers?
Core alignment actively lines up the light-carrying cores of the two fibers using cameras and motorized positioning, while cladding alignment only aligns the outer glass. Core alignment produces lower, more consistent splice loss, which is why professional FTTH and backbone work requires it. The KEFOK6 is a true 6-motor core-alignment splicer.
What splice loss should a good fusion splicer achieve?
A quality core-alignment splicer achieves typical splice loss of 0.02 dB or lower on single-mode fiber. The KEFOK6 meets that 0.02 dB figure and aligns across SM, MM, DS and NZDS fiber types.
How long does a fusion splice take?
On the KEFOK6, a splice completes in about 6 seconds and the heat-shrink cycle in about 16 seconds. A single charge covers roughly 240 splice-and-heat cycles — about a full day in the field.
Do I need a separate power meter and fault locator?
Not with the KEFOK6. It has a built-in optical power meter (−70 to +6 dBm) and a visual fault locator, so you can splice, verify the link and locate faults with one device instead of carrying three.
What's included in the box?
The KEFOK6 ships as a complete field kit: the splicer, a high-precision cleaver, spare electrodes, a fiber stripper and a rugged aluminum carrying case — ready to use out of the box.
Are consumables like electrodes replaceable?
Yes. The KEFOK6 uses replaceable electrodes, and spares are included in the kit.
Do you offer bulk pricing or purchase orders for businesses and schools?
Yes. Karvinger supports PO-based purchasing for professional and institutional buyers, with volume pricing starting at 5 units and net terms available on approval — useful for ISPs, contractors and training programs equipping multiple stations.
What warranty and shipping come with the KEFOK6?
The KEFOK6 is covered by Karvinger's 2-year limited warranty against manufacturing defects. It ships free express from Karvinger's U.S. warehouses, typically arriving in about 3–4 business days.
