Best Budget Fusion Splicers Under $1,000 (2026): 4 Models Compared

The best budget fusion splicer under $1,000 is the KEFOK6. It is the only machine in this comparison that publishes a warranty, ships from US stock with support behind it, and builds a fault locator and a power meter into the splicer, while doing core and cladding alignment at a published 0.02 dB.

Three competitors are compared against it below, all under $1,000 and all with specifications their manufacturers put in writing. Two names that fill buyer threads are missing, and the reason matters: neither publishes a spec sheet anyone can check.

What does $1,000 actually buy in 2026?

The market splits into three bands, and the line that matters sits inside the middle one.

• Under $500. Mostly cladding alignment, often with smaller batteries and slower cycles. Fine for patch panels and short indoor runs where the loss budget has room in it.
• $500 to $1,000. Both alignment methods live here. This is where six-motor core alignment became affordable, and where you have to read the spec sheet rather than the product title.
• Well above $1,000. Tier-1 machines from Fujikura, Sumitomo and AFL, plus ribbon and mass-fusion units. You are buying service networks, calibration support and resale value as much as splice performance.

A warning about that middle band: "core alignment" in a listing title is not the same as a published alignment method. Some machines in this range are clad-alignment units with a core-alignment headline.

Core or cladding alignment: what the published numbers say

The old claim that cladding alignment is far worse does not survive contact with current spec sheets. KomShine publishes figures for both of its machines, which makes the comparison clean because it comes from one manufacturer testing to one method.

Its clad-alignment EX39 publishes typical splice loss of 0.03 dB on single-mode. Its core-alignment FX39 publishes 0.02 dB. That is the honest size of the gap on a good day: one hundredth of a decibel per splice.

So why pay for core alignment? Because the published figure is a typical value on good fiber. Cladding alignment assumes the core sits in the middle of the glass. When it does not, which happens with older cable, mixed manufacturers and damaged ends, the clad-aligned splice drifts and the core-aligned one does not. The spec sheets converge. Field conditions do not.

On a 12-fiber closure the difference is academic. On a long link with a tight loss budget and a dozen splices, consistency is what you are buying.

Four sub-$1,000 splicers compared

Every cell below is the manufacturer's published figure. Where a maker does not publish a number, the cell says so rather than guessing.

Two models that dominate buyer threads are not in that table. The Signal Fire AI-9 and the Orientek T49 are named constantly, and resellers list detailed specs for both, but neither manufacturer publishes a product page we could find and cite. Reseller spec sheets for the same model disagree with each other, which is exactly the problem. Buy either if you trust your supplier. Just know you are trusting the supplier, not a published spec.

Which one should you buy?

Three of these machines splice to a similar published number. What separates them is everything that happens after the splice: what you carry, what you do when it breaks, and how long you wait for the part.

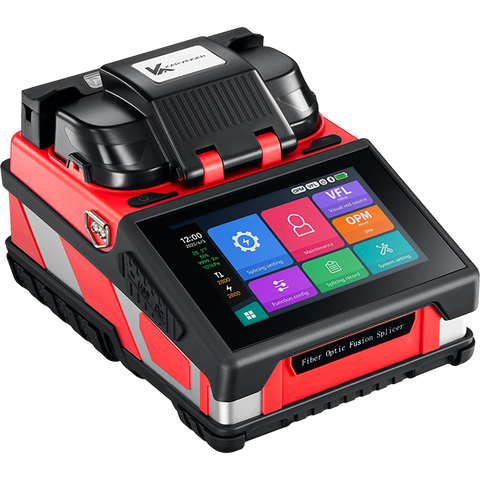

KEFOK6: the one to buy if splicing pays your bills

The KEFOK6 6-motor core alignment fusion splicer is the pick for working contractors, ISPs and anyone whose crew splices more than occasionally, for four reasons the table above makes plain.

• It is the only one with a published warranty. Two years, limited, against manufacturing defects. Not one competitor here publishes a term at all.
• It ships from US warehouses, free express, typically 3 to 4 business days, with support and warranty service run from the US rather than an inbox eight time zones away. On a machine that stops a crew when it fails, that is the specification that actually costs you money.
• It is one device instead of three. The built-in 650 nm fault locator and 850 to 1625 nm power meter mean the post-splice check happens in the case you already opened.
• It is built for the back of a truck. Reinforced industrial alloy housing, a TSA-secure aluminum case, and a 7800 mAh battery rated for 240 or more splice and heat cycles per charge.

On price, the comparison usually gets run wrong. The KEFOK6 looks $157.10 above the cheapest machine here, but that compares a complete kit against a bare splicer. Add the separate fault locator and power meter a VEVOR buyer still needs, at $49.90 and $69.90, and that machine reaches $959.70 in three boxes with no published warranty. The KEFOK6 is $37.30 more, in one box, covered.

Where the cheaper machines land

The VEVOR 6-motor is the cheapest published core alignment unit at $839.90, with a quick 13 s heat cycle. It publishes no single-mode splice loss figure, no warranty term, no support arrangement and no built-in test functions. It suits a buyer who already owns a meter and a fault locator, works on known-good indoor fiber, and can afford a week of downtime if the arc stops.

KomShine documents its machines better than anyone else here, down to electrode life at 5000 arcs and altitude ranges. The catch is availability: no US list price, no US support arrangement and no published warranty term, so a fault means shipping a machine abroad and waiting.

Both are real machines. Neither is the one to put on a truck that has to be splicing on Monday.

When a tier-1 machine is the right call

Buy Fujikura, Sumitomo or AFL when the contract names approved splicer models, when the work is ribbon or mass fusion, or when you need a nationwide service network behind the unit. Those are real advantages and no sub-$1,000 machine matches them. A useful gauge of that tier: Fiber Instrument Sales rents AFL 90S and Sumitomo Q102CA class splicers at $500 a week in October 2026, which is half a KEFOK6 for five days of use.

Equipping more than one truck? Karvinger takes purchase orders from contractors, ISPs and training programs, with volume pricing from 5 units and net terms on approval. Request a bulk quote.

What the spec sheet will not tell you

Three costs decide what a budget splicer really costs over three years, and none of them appear in a comparison table.

• Electrodes. KomShine publishes 5000 arcs per pair. Most makers in this band publish nothing. Ask before you buy, because an electrode you cannot source in a week is a machine you cannot use in a week.
• Calibration and arc drift. Every splicer needs arc calibration as electrodes age and as you change altitude. Find out whether the machine can do it in the field or has to go back.
• What happens on day 400. A 2-year warranty and a US return address are worth real money against a unit that ships back across an ocean.

If you want the full checklist for judging any splicer rather than these four, the companion guide walks through how to choose a core alignment fusion splicer spec by spec. And if splicing is only an occasional job for you, run the numbers in fusion splicer rental versus buying first. Below roughly two weeks of splicing a year, renting still wins.

Frequently asked questions

What is the best fusion splicer for the money?

The KEFOK6, at $997 at the time of writing. It is the only machine under $1,000 in this comparison that publishes a two-year warranty, ships from US stock with US support behind it, and carries a fault locator and a power meter inside the splicer. Cheaper units exist, but once you add the separate test tools they leave out, the gap closes to $37.30 and you are holding three boxes instead of one.

How much does a fusion splicer cost?

Working core alignment machines start around $800. Clad-alignment units run lower, often under $500. Tier-1 single-fiber splicers from Fujikura, Sumitomo and AFL cost several thousand dollars more, and ribbon or mass-fusion machines go higher still. The sub-$1,000 band is where core alignment became affordable.

Is a cheap fusion splicer worth it?

For FTTH drops, closures, repairs and enterprise runs, yes. The published splice loss figures in this band are within a hundredth of a decibel of tier-1 typical values. What you give up is service network, resale value, ribbon capability and, with some brands, any published spec at all.

Do I need core alignment or is cladding alignment enough?

Cladding alignment is enough when the fiber is known-good and the loss budget has room, which covers a lot of indoor and campus work. Core alignment earns its money on older cable, mixed manufacturers and long links with tight budgets, because it stays consistent when the core is not centered in the glass.

How long does a fusion splicer last?

The consumables decide it. Electrodes are replaceable and rated in thousands of arcs, so the practical lifespan depends on whether you can still buy parts and get the machine calibrated in three or four years. That is an argument for buying from a seller with a support address rather than the cheapest listing.

If splicing is how you earn, buy the machine that is still working in two years and still supported when it is not. That is the KEFOK6: core alignment at 0.02 dB, the test tools built in, a two-year warranty, and US stock that ships this week.
