Renting a tier-1 single-fiber fusion splicer costs about $500 a week, or $1,000 for four weeks, at a major U.S. rental house. Two separate one-week rentals already cost as much as buying a capable core alignment splicer outright. If your crews splice more than two weeks a year, owning is cheaper; below that, rent.
That is the short answer. The useful answer depends on how your splicing work is spread across the year, what the rental quote leaves out, and what you give up when the machine you own is not a tier-1 unit. Here are the numbers, with sources, so you can run them for your own crews.
What a fusion splicer rental costs in 2026
Fiber Instrument Sales (FIS) publishes its rental rates openly, which makes it a good benchmark. These are the listed prices on its fusion splicer rental page in October 2026:
| Model | 1 week | 2 weeks | 4 weeks | Daily extension |
|---|---|---|---|---|
| AFL 90S | $500 | $800 | $1,000 | $50 |
| Sumitomo Q102CA | $500 | $800 | $1,000 | $50 |
| Sumitomo Q101M12 (mass fusion) | $915 | $1,460 | $1,825 | $92 |
| FIS CA6 | $375 | $600 | $750 | $38 |
| FIS AC7 (clad alignment) | $200 | $325 | $400 | $15 |
| AFL 90R (ribbon) | $915 | $1,460 | $1,825 | $92 |
| Sumitomo Quantum Ultra (16-fiber) | $1,100 | $1,800 | $2,700 | $600 |
Those rates are in line with the wider market. The rental marketplace KWIPPED publishes a weekly average of $799 across its suppliers, in a range of $425 to $1,238, drawn from quotes over the previous twelve months. A $500 week for a tier-1 single-fiber machine is a fair benchmark rather than a bargain.
Two details matter for budgeting. Daily extensions only apply on top of a weekly, two-week or monthly rental, so a job that overruns by three days on a one-week AFL 90S adds $150. And the price per week falls hard with length: the four-week rate works out to $250 a week, half the one-week rate.
Renting a tier-1 machine, or owning a cheaper one
The old version of this comparison was rent a tier-1 splicer against buy a tier-1 splicer. That one is hard to run now, because the major dealers quote tier-1 purchase prices rather than publishing them. What is published is the rental side: $500 a week, $800 for two weeks, $1,000 for four, for an AFL 90S or Sumitomo Q102CA class machine.
So treat the tier-1 question as a rental question. If a contract names an approved splicer model, you rent it, and the only variable is how many weeks. The real buying decision sits one tier down.
The math against a sub-$1,000 core alignment splicer
Core alignment no longer requires a tier-1 budget. The KEFOK6 6-motor core alignment fusion splicer is $997 at the time of writing, which changes the break-even point completely:
| Splicing per year | How you would rent it | Rental cost (AFL 90S class) | Buying a KEFOK6 |
|---|---|---|---|
| 1 week | One 1-week rental | $500 | $997 |
| 2 weeks, two separate jobs | Two 1-week rentals | $1,000 | $997 |
| 4 weeks, one block | One 4-week rental | $1,000 | $997 |
| 6 weeks, six separate jobs | Six 1-week rentals | $3,000 | $997 |
| 12 weeks, three blocks | Three 4-week rentals | $3,000 | $997 |
The break-even lands at roughly two weeks of splicing a year, and it arrives faster when the work comes in short, separate jobs, which is how drop and repair work tends to arrive. A crew that splices one week every other month spends $3,000 a year on rentals. The purchase is paid off by the second job.
If splicing work arrives in short, scattered jobs, renting is the expensive option.
Costs the rental quote leaves out
The weekly rate is the visible number. Before you compare it with a purchase price, ask the rental house how it handles these, because each one moves the math:
- Transit days. A rental ships to you and back. Check whether shipping days count against the rental period and who pays freight both ways.
- Overruns. At $50 a day on the AFL 90S class, a week of weather delays costs $350 on top of the original rental.
- Damage and loss. Splicers get dropped from bucket trucks and left in vaults. Read who carries that risk and what a damaged-unit charge looks like before the unit leaves the dock.
- Scheduling risk. When a job moves up a week, an owned splicer is already in the truck. A rental has to be rebooked, and popular models are not always on the shelf.
Owning has its own costs: electrodes wear out and need replacing, the arc needs periodic calibration, and a broken machine stops the crew until it is repaired. Budget for spare electrodes and sleeves from day one. The KEFOK6 kit ships with one spare pair of electrodes and a 2-year limited warranty against manufacturing defects, which covers the early-failure window, but no warranty brings a machine back the same afternoon.
When renting still wins
Buying a budget core alignment machine is not the right answer for every job. Rent when:
- The job is ribbon or mass fusion. The KEFOK6 spec sheet lists single-mode, multimode, DS and NZDS fiber, with no ribbon mode, so a high-count ribbon build still calls for an AFL 90R or Sumitomo Q101M12 class machine at $915 a week.
- The owner's spec or contract names approved splicer models. Then the decision is made for you, so read it before you bid.
- You splice once or twice a year and have nobody on staff who keeps a splicer maintained between jobs.
For everything else (FTTH drops, closures, repairs, enterprise and campus runs), the per-week rental cost outruns a sub-$1,000 purchase quickly.

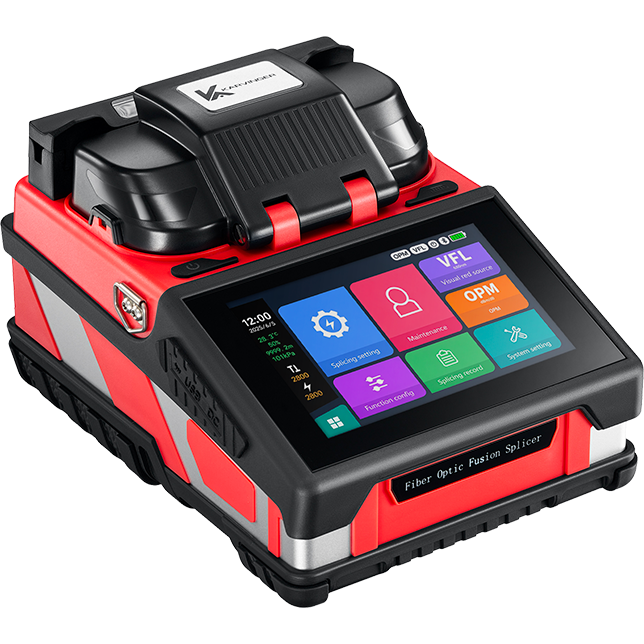

Where the KEFOK6 fits
The KEFOK6 is a 6-motor core and cladding alignment splicer. Its published specs, copied from the product data:
- Typical splice loss of 0.02 dB, with SMF G.652, MMF G.651, DSF G.653 and NZDSF G.655 support.
- 6 s splice time (SM typical) and a 16 s adjustable heating cycle for 20 to 60 mm sleeves.
- 10.8 V, 7800 mAh battery rated for 240+ splice and heat cycles per charge.
- Built-in 650 nm visual fault locator and an optical power meter covering 850 to 1625 nm, so a quick post-splice check does not need a second tool.
- Kit includes the cleaver, stripper and pliers, spare electrodes, a TSA-secure aluminum case and the power adapter.
If you want the full checklist for judging any splicer on alignment, throughput and total cost of ownership, the buyer's guide for ISPs and fiber contractors walks through it, and our sub-$1,000 splicer guide explains why core alignment at this price is now realistic.
Stop paying rent on a splicer: the KEFOK6 ships free by express from U.S. warehouses, typically in 3 to 4 business days, ready to splice out of the case.
Running the numbers per truck
The gap widens with every crew. Take three crews that each need a splicer for three separate four-week blocks a year. Renting AFL 90S class machines costs 3 crews × 3 blocks × $1,000, which is $9,000 a year. Putting a KEFOK6 on each truck costs 3 × $997, or $2,991, once.
That difference pays for spare electrodes, sleeves, a backup splicer for the shop and a fair amount of overtime.
Equipping more than one crew? Karvinger handles purchase orders for contractors, ISPs and training programs, with volume pricing from 5 units and net terms on approval. Request a bulk quote.
Frequently asked questions
How much does it cost to rent a fusion splicer?
At FIS in October 2026, weekly rates run from $200 for the clad-alignment FIS AC7 to $1,100 for a 16-fiber Sumitomo Quantum Ultra. Common single-fiber tier-1 models such as the AFL 90S and Sumitomo Q102CA rent for $500 a week, $800 for two weeks or $1,000 for four.
Is it cheaper to rent or buy a fusion splicer?
Tier-1 purchase prices are quoted rather than published, so the comparison that can actually be run is against a sub-$1,000 core alignment machine. On that basis, buying is cheaper as soon as you need more than about two weeks of splicing a year.
Can you rent a ribbon fusion splicer?
Yes. FIS lists the AFL 90R and Sumitomo Q101M12 at $915 a week and a 16-fiber Sumitomo Quantum Ultra at $1,100 a week. For occasional ribbon work, renting is usually the sensible route.
What should I check before signing a rental agreement?
Ask whether shipping days count against the rental period, who pays freight both ways, how damage and loss are charged, and what the daily extension rate is. Those four answers often decide whether a rental is cheaper than it looks.
Bottom line: rent for ribbon work and the odd one-off job. If splicing shows up on your schedule more than twice a year, put a core alignment splicer on the truck and stop paying for it every time.
