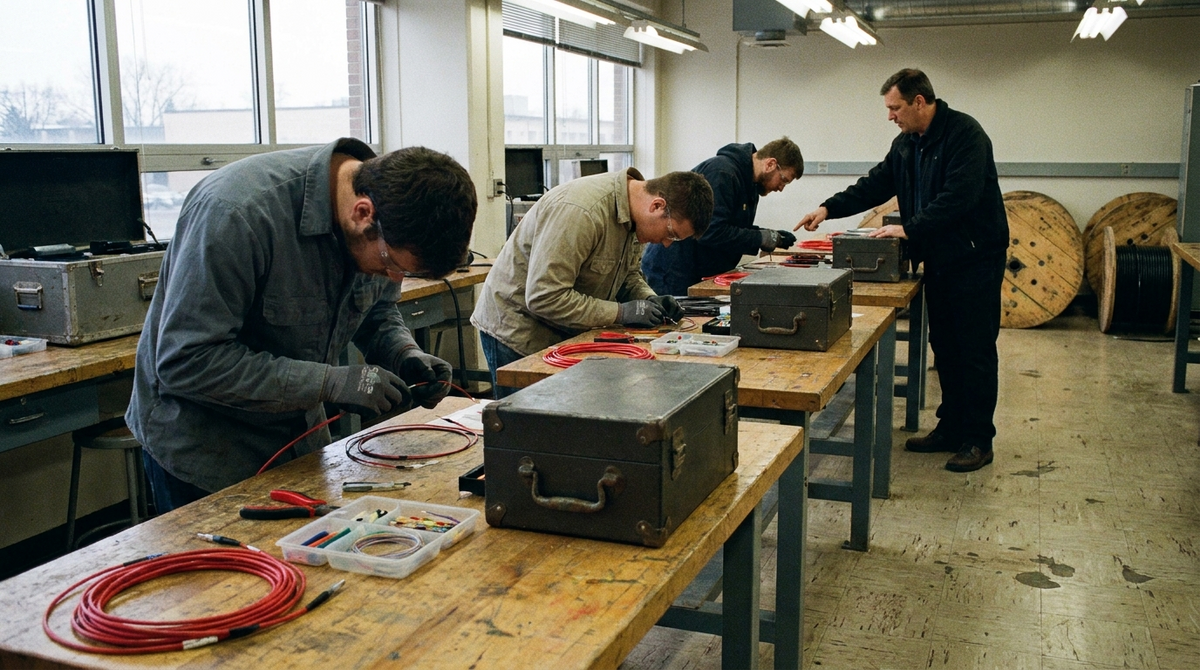

A fiber optic training lab needs one splicer per pair of students, which puts most programs between 10 and 20 machines. At tier-1 prices that is $20,000 to $80,000 in splicers alone. At $997 a station the KEFOK6 brings the same core alignment method inside a department equipment line, which is what has changed for program budgets since 2023.
This guide is for program directors, department heads and procurement officers specifying machines for a classroom rather than a truck. The requirements are genuinely different, and the usual buying advice gets two of them wrong.
What a classroom needs that a field crew does not
Field buyers optimize for splice quality and battery life. A lab has three other constraints.
- Unit count over unit capability. Twelve adequate machines teach more than three excellent ones. Students learn by repetition, and a queue is the enemy of repetition.
- Survivability under inexperienced hands. Machines that see thirty students a week age differently from one technician's splicer. Electrodes wear faster, clamps get forced, lids get dropped.
- Parts you can get mid-semester. A machine waiting three weeks for electrodes is a station out of service for a third of a term.
Splice loss still matters, but not the way it does on a contract. Students need a machine that behaves like the ones they will meet at work, not one that wins a specification contest.
What a lab actually costs
Run the two bands against the same classroom. These are per-unit prices multiplied out, nothing more.
| Stations | Tier-1 at $2,000 to $4,000 each | Core alignment under $1,000, at $997 each |
|---|---|---|
| 10 | $20,000 to $40,000 | $9,970 |
| 15 | $30,000 to $60,000 | $14,955 |
| 20 | $40,000 to $80,000 | $19,940 |
Karvinger prices are as at the time of writing. The point is the ratio, not the cents: a 20-station lab moves from a number that needs board approval to one that fits an annual equipment line.
A splicer alone does not teach the testing half of the job. Adding a visual fault locator, a power meter and a fiber identifier to each station brings a full kit to $1,286.70 at the time of writing, so 10 stations come to $12,867.00 and 20 to $25,734.00. Most programs buy test gear in smaller numbers and rotate it, which is reasonable: students can share a meter in a way they cannot share a splicer.
Does the alignment method matter for teaching?
Yes, but for a narrower reason than the marketing suggests.
Published typical splice losses for the two methods are close. KomShine's clad-alignment EX39 lists 0.03 dB on single-mode against 0.02 dB for its core-alignment FX39. A student will not feel one hundredth of a decibel.
What they will meet in the field is core alignment, because that is what outside plant work uses. Teaching the alignment method, the camera view and the arc calibration routine on the same class of machine they will be handed on their first job removes a learning step from their first week. That is the argument, not splice loss.
The spec-by-spec guide to choosing a core alignment splicer covers the comparison in full if you are building a specification document.
Planning for consumables and wear
Budget these per semester rather than per machine. Numbers vary too much by cohort size to publish a useful figure, so treat it as a checklist to price with your supplier before the term starts.
- Electrodes. The wear item that matters. Ask the manufacturer for a published arc count and order spares per machine, not per lab.
- Splice protection sleeves. Consumed one per splice, so consumption scales directly with student repetitions. Order in the length your closures and trays take.
- Cleaver blade rotations. Cleave quality drives splice quality more than anything a student does at the machine. Build blade rotation into the lab routine.
- Fiber. The cheapest thing in the room and the one that runs out first.
One planning note on replacement cycles. A machine under $1,000 changes the accounting: rather than a capital asset expected to last a decade, it becomes something you can plan to replace on a three to five year cycle, keeping the lab current without a capital request each time.
Specifying the KEFOK6 for a lab

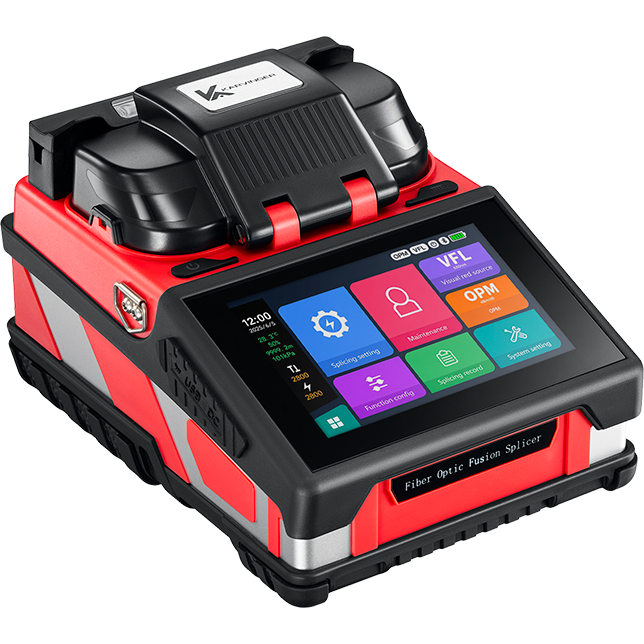

The KEFOK6 6-motor core alignment fusion splicer is the machine to specify for a teaching lab, and the case is strongest exactly where classroom buying is hardest: unit count, uptime and procurement.
- It teaches the right method. Core and cladding auto-alignment at a published 0.02 dB typical splice loss, which is the technology your graduates will be handed on their first outside plant job.
- It keeps a lab period moving. A 6 s splice and a 16 s heat cycle. Across twenty students doing five splices each, cycle time decides whether the class finishes.
- It survives the semester. Reinforced industrial alloy housing and a TSA-secure aluminum case, with a 7800 mAh battery rated for 240 or more splice and heat cycles per charge, so benches do not need an outlet each.
- It is one purchase order line per station. Cleaver, stripper, spare electrodes and a hard case ship in the kit, instead of six part numbers from four suppliers.
- It is two instruments fewer per bench. The built-in 650 nm fault locator and 850 to 1625 nm power meter let students run a post-splice check without a second device at every station.
- It is supported where your purchasing office is. A two-year limited warranty, US warehouses and free express shipping in about 3 to 4 business days, so a failed unit in week six is a replacement part, not a lost semester.
That last point is the one program directors underrate. A cheaper machine with no published warranty and no domestic support address is a station you cannot guarantee for the next cohort.
For how those testing functions fit the wider curriculum, fiber optic testing tools explained covers the full instrument set including the ones no splicer replaces.
Equipping a lab? Karvinger takes purchase orders from schools and training programs, with volume pricing from 5 units and net terms on approval. Request a bulk quote with your station count and we will quote against it.
Frequently asked questions
How many fusion splicers does a training lab need?
One per pair of students is the practical minimum, so a class of 20 needs 10 machines. One per student is better where budget allows, because splicing is a motor skill and students improve with repetitions rather than observation. Below one per pair, lab time turns into queue time.
How much does it cost to equip a fiber optic lab?
Splicers dominate the bill. Ten stations run $20,000 to $40,000 with tier-1 machines, or about $9,970 with core alignment units under $1,000. Adding a full test kit at every station roughly brings a 10-station lab to $12,867.00 at the time of writing, though most programs share test instruments rather than buying one set per bench.
Should students learn on core alignment or cladding alignment splicers?
Core alignment, because that is what outside plant work uses and the workflow differs at the machine. The splice loss difference between the two methods is about one hundredth of a decibel on published figures, so the argument is familiarity with the equipment, not measurement quality.
What else does a fiber splicing lab need besides splicers?
Cleavers and strippers per station, splice protection sleeves and fiber by the reel, plus shared test instruments: a visual fault locator, a power meter with a light source for loss exercises, and a fiber inspection scope. The scope teaches the habit that prevents most real-world failures.
Can schools buy fusion splicers on a purchase order?
Yes. Karvinger accepts purchase orders from institutional buyers, with volume pricing from 5 units and net terms available on approval, which fits how most departments procure equipment across a budget cycle.
Specify core alignment, buy one machine per pair of students, and put the money you save on splicers into consumables and bench time.
